ASI 8154 Specimen Pass Thru Cabinet for Walls 1-3/4" - 5-1/2" Thick

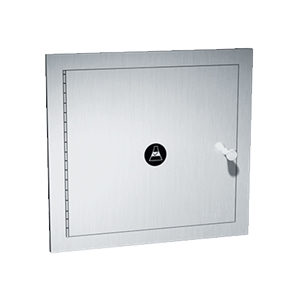

ASI 8154 Specimen Pass Thru Cabinet in for Hospital Walls 1-3/4" - 5-1/2" Thick

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $487.70
Our Price: $268.20
Savings: $219.50
Manufacturer: ASI
Availability: Usually Ships in 3-5 Business Days


Free Shipping
Product Code: 8154
Qty:

Description Technical Specs

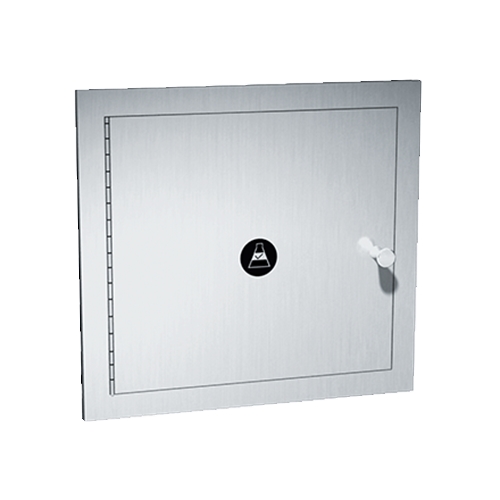

ASI 8154 Specimen Pass Thru Cabinet, Satin Stainless Steel Finish
Construction
Specimen Pass-Through Cabinet shall be fabricated of alloy 18-8 stainless steel, type 304, 18 gauge. Adjustable flange and fixed trim shall be 1" wide formed from one piece with no miters, welding, or open seams and have a 1/4" square return to wall or partition. Adjustable flange shall provide an installation range of 1-3/4" to 5-1/2". Structural assembly of all components shall be of welded construction. Doors shall be attached to the edge of unit with a full length 3/16" diameter stainless steel multi-staked piano hinge and shall be held closed with a spring tension interlocking mechanism which shall prevent both doors from simultaneous opening. Each door shall have an international decal applied identifying usage. A removable stainless steel drip tray shall be provided at bottom of cabinet. All exposed surfaces shall be № 4 satin finish.

Installation
Unit can be mounted in walls ranging in depth from 1-3/4" to 5-1/2". Fixed flange is secured first through (4) mounting holes which accommodate № 10 self tapping screws (supplied). Adjustable flange is then secured to opposite side of partition in same manner. For general utility install unit with centerline of doors 54" AFF.

For compliance with ADA Accessibility Guidelines, unit shall be installed with centerline of doors 54" maximum above finished floor (AFF) if clear floor side reach is provided or 48" maximum AFF if clear floor forward reach access is only provided or 46" maximum AFF if side reach over and obstruction (i.e. vanity) is only provided.

Rough Wall Opening required: 11-1/2" W x 11" H x 1-3/4" to 5-1/2" D

Operation
Specimens are deposited through one side of unit and are retrievable on other side when first door is returned to closed position. Drip tray is removable for cleaning.
