ASI 8205 Left or Right Hand L-Shaped Padded Shower Seat

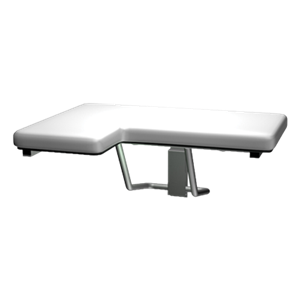

ASI 8205 33" W Padded L-Shaped Shower Seat

Alternative Views:
Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $722.80
Our Price: $397.50
Savings: $325.30
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Free Shipping
Product Code: 8205


Position: 		Left Hand
Right Hand

Qty:
Description Technical Specs

ASI 8205 Left or Right Hand L-Shaped Padded Shower Seat, ADA Compliant
Construction
"L- shaped" Fold-up Padded Shower Stall Seat shall have all metal parts fabricated of 18-8 stainless steel type 304; seat frame and support legs shall be 1" diameter and 1-1/4" square x 18 gauge tubing with 3/16" thick mounting flanges and 16 gauge guide bracket/arm support. All exposed surfaces shall have No. 4 satin finish. Structural assembly shall be of welded construction. All exposed edges and corners shall be radiused and/or deburred. Seat shall be sponge cushion covered with off-white Naugahyde® mounted on 1/2" thick marine grade plywood. Support arm shall fold up when in retracted position to provide low profile against wall. No extra fittings shall be required to retain seat in storage position. Guide bracket shall control seat lowering into operating position. Unit shall satisfy ADA Accessibility Guidelines when properly installed.

ASI Shower Seats are designed to meet and exceed ADAAG requirements as published in ICC/ANSI A117.1- 2003 section 610 and CFR 28 Part 36, Federal Register Vol. 56, No 144, July 26, 1991, section 4.21.3 and section 4.26.3, that fabricated product shall be of adequate strength to support a load of 250 pounds (113.4 kg) and unit shall conform to size and edge clearances as diagrammed. Mounting to the wall is a critical part of the system to meet this requirement. To withstand the shear, tension or pullout, and torsion loads generated by the maximum loading, the fastener system must be adequately sized. Unit is load rated to support a weight of 500 lbs at front edge when properly installed and has been tested to successfully hold a weight in excess of 1000 lbs. The supporting wall must be adequately reinforced to carry the rated load for the products lifetime.

Installation
This unit is surface mounted. Installer/contractor must provide concealed anchor plate or blocking as specified in construction documents or as required by local building codes prior to wall finishing. Fasten unit flanges and guide bracket to concealed anchor or blocking plate with appropriate hardware. Note that concealed mounting plates or anchors and hardware are not supplied with this product and must be specified separately. Ensure that mounting configuration complies with local building codes.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.

Operation
Fold-up Shower Seat requires only one hand operation to manually lower to horizontal position for use or raise for departure and arrival. Guide bracket with spring detent prevents seat from dropping and provides positive support in usage position as well as spring locked storage position.
