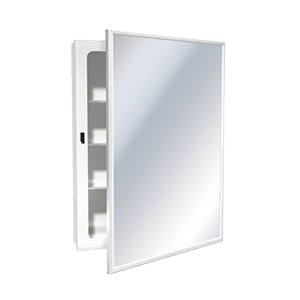

ASI 8340 Surface Mounted Medicine Cabinet with Mirror and 3 Adjustable Shelves, White
ASI 8340 Surface Mounted Medicine Cabinet with Mirror and Shelves

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-895
List Price: $215.50
Our Price: $118.50
Savings: $97.00
Manufacturer: ASI
Availability: Usually Ships in 2-3 Business Days


Product Code: 8340
Qty:

Description Technical Specs

ASI 8340 Surface Mounted Medicine Cabinet with Float Glass Mirror and 3 Adjustable Shelves
Construction
Recessed Medicine Cabinet with Mirror Swing Door shall be 23 gauge cold rolled steel with a white baked enamel finish. Cabinet interior shall have radius corners and shall be provided with three (3) removable white enamel steel shelves. Interior face trim shall be one-piece construction with no miters and no exposed fasteners or welded seams. Mirror glazing shall be № 1 quality 1/4" thick polished float/plate glass and shall be warranted for fifteen (15) years against silver spoilage. Stainless steel door channel shall be hung on full length 3/16" diameter heavy duty stainless steel multi-staked piano hinge and shall be held closed by a magnetic catch. Cabinet shall have two (2) rubber door silencers. Cabinet can be right-handed swing door or left-handed swing door determined by the installation.

Installation
Unit is mounted in wall recess using four (4) № 10 pan head self-threading screws (by others) through concealed mounting holes provided in cabinet sides. For general utility mount unit 46" above finished floor (AFF) to bottom of unit or 12" above wash basin.

For compliance with 2010 ADA Accessibility Standards install unit so that bottom edge of mirror is 40" MAX AFF.

Note: Bottom edge of reflecting surface is 3/4" below rough wall opening (RWO).

Rough Wall Opening Required: 16" W x 22-3/4" H x 3-1/2" D minimum

Operation
Pull the door to access contents and manually pushes door to engage magnetic catch that holds door shut. Shelf spacing may be adjusted by removing shelves and inserting in any of five (5) internally embossed tracks on each side of cabinet interior.

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 1 Write a review »

  0 of 0 people found the following review helpful:

5 of 5 Good quality cabinet January 12, 2021
Reviewer: Randy Bacus from Lone Jack, MO United States
This cabinet is the best priced high quality cabinet I've found anywhere.  Others cost more and are painted wood and flimsy.   The cabinet shipped super quick and I was happy to add one shower curtain to get free shipping.

Was this review helpful to you?
