Construction

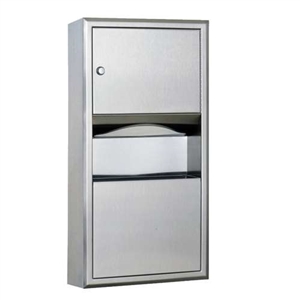

Surface mounted combination paper towel dispenser and waste receptacle fabricated of 22 gauge stainless steel with exposed surfaces in satin finish. Cabinet is of all welded construction. 22 gauge stainless steel 1" wide flange is of one drawn and beveled seamless piece construction and has matching satin stainless steel finish.Door is hinged with a full length stainless steel piano hinge and is equipped with a knob latch. Waste receptacle is made of 22 gauge stainless steel with top edges hemmed for safe handling..
Towel Capacity: 350 C-Fold or 475 Multifold Towels
Waste Capacity: 2 Gallons
Installation
Mount unit on wall with No. 8 x 1-1/4" sheet metal screws (not furnished) at points indicated by an S. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet metal screws. For other wall surfaces, provide fiber plugs or expansion shields for use with sheet metal screws, or provide 1/8" toggle bolts or expansion bolts.
Operation
Paper towel dispenser will dispense C-fold or multifold paper towels without use of special adapter. Optional Towelmate model number 369-130 can be purchased separately to prevent papers from falling forward and out when the door is opened for servicing. Waste receptacle is retained in cabinet by a retaining hook feature and is removable for servicing.
Options
Model B-369 Recessed Combination Paper Towel and Waste Receptacle Unit
|
