Construction

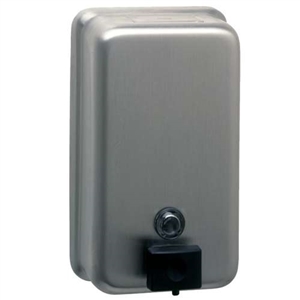

Surface mounted vertical liquid soap dispenser is fabricated of 22 gauge stainless steel, alloy 18-8, type 304. All exposed surfaces have No. 4 satin finish. Soap valve is constructed of black molded plastic push button and spout. Mushroom valve has stainless steel spring, u-packing seal, and duckbill. Capacity: 40 oz.
Installation
Secure wall plate to the wall with three sheet metal screws, furnished by manufacturer, at points indicated by an S. Slide
mounting bracket of container down onto wall plate and secure unit with furnished locking screw. For plaster or dry wall
construction, provide concealed backing to comply with local building codes and secure with sheet metal screws furnished. For
other wall surfaces, provide fiber plugs or expansion shields for use with sheet metal screws furnished, or provide 1/8" (3mm)
toggle bolts or expansion bolts.
Note: Surface mount the dispenser plumb and true with valve 6'' (150mm) to right or left of lavatory center. Provide 4''
(100mm) minimum clearance from the lid to the underside of any horizontal projection. Push buttons should be located 44"
(1120mm) maximum above the finish floor.
Operation
Soap is manually dispensed by depressing push button. Valve operation complies with ADA Accessibility Guidelines by requiring no more than 5 lbs. pressure to actuate and requires no grasping or twisting by operator. Unit is refilled through hinged door at top requiring special key (furnished) to open.
Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
|
