Capacity: 1.2 gallons
Construction

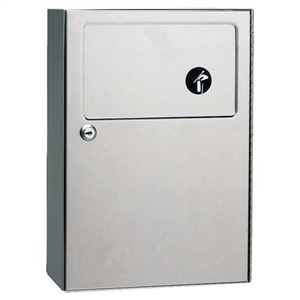

Surface mounted sanitary napkin disposal is fabricated of 18-8, type 304, 22 gauge stainless steel with a satin finish on all exposed surfaces. Self closing lid is secured to container with spring loaded, full length stainless steel piano hinge. The cabinet is equipped with a tumbler lock keyed like other Bobrick washroom accessories. Furnished with a removable, leak proof molded polyethylene receptacle.
Installation
For partitions with particle board or other solid core, secure with four #8 x 1-1/4" (4.2 x 32mm) sheet metal screws (not furnished), or
provide through bolts, nuts, and washers.
For hollow core metal partitions, provide solid backing into which sheet metal screws can be secured. If two units are installed back to back,
then provide threaded sleeves and machine screws for the full thickness of partition.
For plaster or dry wall construction, provide concealed backing to comply with local building coeds, then secure unit with #8 x 1-1/4"
(4.2 x 32mm) sheet metal screws.
For other wall surfaces, provide fiber plugs or expansion shields for use with #8 x 1-1/4" (4.2 x 32mm) sheet metal screws, or provide
3/16" (5mm) toggle bolts or expansion bolts.
Operation
User pushes open door to deposit waste. Napkin disposal is emptied by unlocking cabinet with key (furnished) and removing waste receptacle.
Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
|
