Bobrick B-306 Liquid Soap Dispenser

Home > Soap Dispensers > Wall Mounted >

Bobrick B-306 TrimLineSeries™ Recessed Manual Liquid Soap Dispenser, 45 oz

List Price: $260.10

Our Price: $149.56

Savings: $110.54

Manufacturer: Bobrick
Country of Origin: Mexico
Availability: Usually Ships within 2-3 Business Days

Product Code: B-306

Qty:

Description

Technical Specs

A Note from the Manufacturer

Bobrick B-306 TrimLineSeries™ Recessed Manual Liquid Soap Dispenser, 45 oz, Satin Finish

Construction

Recessed horizontal liquid soap dispenser is fabricated of 18-8, type 304. All exposed surfaces have No. 4 satin finish. 18 gauge door is held closed with tumbler lock keyed like other Bobrick washroom accessories. Soap valve is constructed of a chrome plated brass body with stainless steel inner spring and spout. Capacity: 45 oz.

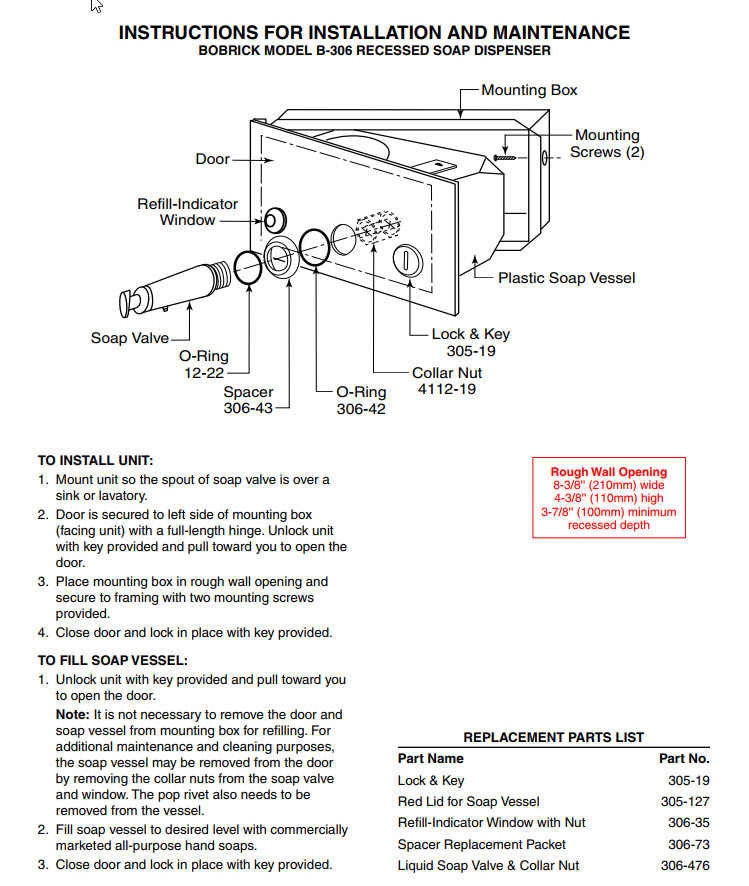

Installation
Provide framed rough wall opening 8-3/8" wide by 4-3/8" high (210 x 110mm). Minimum recessed depth required from finish face of wall is 3-7/8" (98mm). Allow clearance for construction features that may protrude into rough wall opening from opposite wall. Coordinate with mechanical engineer to avoid pipes, vents, and conduits. Mount cabinet with shims between framing and cabinet at all points indicated by an S, then secure unit with screws furnished by manufacturer.

Note: Place unit as close to top of deck of lavatory as plumbing vent code will permit and with bottom of door high enough to clear fixture trim.

Operation
Soap is manually dispensed by depressing push button. Valve operation complies with ADA Accessibility Guidelines by requiring no more than 5 lbs. pressure to actuate and requires no grasping or twisting by operator. Unit is refilled by unlocking door/tank assembly requiring special key (furnished) to open. Fills without removing door from wall.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
