Grab bar does not fit over this unit, see model 34715 for ADA Compliant model
Construction

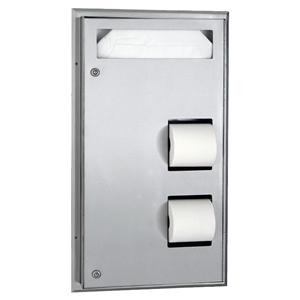

Partition mounted toilet seat cover and multi roll toilet tissue dispenser is fabricated of 18-8, type 304 stainless steel. The cabinet is an all welded construction. Flange is drawn and beveled, one piece, seamless construction. The door is secured to the cabinet with full length piano hinges and equipped with a tumbler lock keyed like other Bobrick washroom accessories. Spindles are theft resistant, one piece, molded ABS. All exposed surfaces are satin finish.
Installation
Mount unit in toilet partition 1/2" to 2" thick, centered through a cutout specially ordered from the partition manufacturer or field cut. Dimensions of cutout are to be 15-1/2" wide x 28-7/8" high (395 x 735mm). For factory made cutouts,
location and size details must be furnished to partition manufacturer. For hollow core metal partitions, provide solid framing
into which sheet metal mounting screws can be secured.
For installation with sheet metal screws furnished, place unit firmly in partition cutout, making certain entire perimeter of fixed
flange is flush with and tight against partition surface. Secure to partition with sheet metal screws through four mounting holes
at points indicated by an S. On other side of partition, position adjustable flange (which serves as an escutcheon) so mounting
holes are not inline with mounting holes in fixed flange. Make certain entire perimeter of adjustable flange is flush with and
tight against partition surface before securing with sheet-metal screws furnished.
For through bolting method of installation, make sure mounting holes in adjustable flange are inline with holes in fixed flange.
Using adjustable flange as template to mark locations, drill 7/32" or 1/4" (5.5 or 6.4mm) holes through partition. Provide
four binder posts and #6 (3.5mm) flat-head screws to secure unit and its adjustable flange.
Note: Cutouts in Bobrick toilet partitions can be pre-cut for Bobrick partition mounted accessories at factory if location and size
of cutouts are specified and order for both partitions and accessories are received together.
Operation Holds four (4) standard core toilet tissue rolls up to 5-1/4" diameter (two for each side). The spindles can only be removed when the door is open. Toilet seat cover dispenser holds 1000 single or half fold paper covers. The doors unlock with key provided and swing open for filling.
Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
|
