Construction

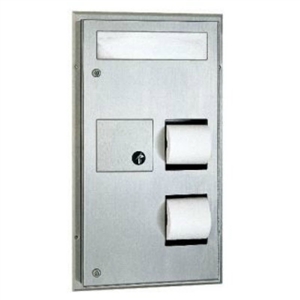

Partition mounted toilet seat cover and multi roll toilet tissue dispenser with sanitary napkin disposal is fabricated of 18-8, type 304 stainless steel. The cabinet is an all welded construction. Flange is drawn and beveled, one piece, seamless construction. The door is secured to the cabinet with a full length piano hinge and is equipped with a tumbler lock keyed like other Bobrick washroom accessories. Spindles are theft resistant, one piece, molded ABS. Disposal panel is secured to cabinet with a spring loaded hinge resulting in the door being in the closed position. Removable waste receptacle is fabricated of leak proof molded polyethylene with a 0.8 gallon capacity. All exposed surfaces are satin finish.
Installation
Mount unit in toilet partition 1/2'' to 2'' (13 x 51mm) thick, centered through a cutout specially ordered from partition
manufacturer or field cut. Dimensions of cutout are to be 15-1/2" wide x 28-7/8" high (395 x 735mm). For factory made
cutouts, location and size details must be furnished to partition manufacturer. For hollow core metal partitions, provide solid
framing into which mounting screws can be secured.
For installation with sheet metal screws furnished, place unit firmly in partition cutout, making certain entire perimeter of
fixed flange is flush with and tight against partition surface. Secure to partition with sheet metal screws through four mounting
holes at points indicated by an S. On other side of partition, position adjustable flange (which serves as an escutcheon) so
mounting holes are not inline with mounting holes in fixed flange. Make certain entire perimeter of adjustable flange is flush
with and tight against partition surface before securing with sheet metal screws furnished.
For through bolting method of installation, make sure mounting holes in adjustable flange are inline with holes in fixed flange.
Using adjustable flange as template to mark locations, drill 7/32" or 1/4" (5.5 or 6.4mm) holes through partition. Provide four
binder posts and #6 (3.5mm) flat-head screws to secure unit and its adjustable flange.
Note: Cutouts in Bobrick toilet partitions can be pre-cut for Bobrick partition mounted accessories at factory if location and
size of cutouts are specified and order for both partitions and accessories are received together.
Important Note: Where 2010 ADA, 2017 ICC A117, 2012 TAS, 2019 CBC apply individual toilet tissue dispensers, toilet seat-cover dispensers, and sanitary napkin disposals must be installed below the horizontal grab bar.
Operation
Holds four (4) standard core toilet tissue rolls up to 5-1/4" diameter, 2 for each compartment. Toilet seat cover dispenser holds 1000 single or half fold paper covers. The doors unlock with key provided and swing open for filling. The 0.8 gallon receptacle is removable for servicing.
Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
|
