Construction

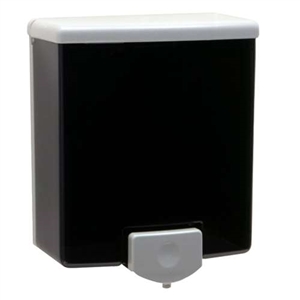

Surface mounted liquid soap dispenser is fabricated of black, translucent ABS and a lid, valve, and wall bracket of grey, high impact resistant ABS. The mushroom valve has a stainless steel spring, u-packing seal and duckbill. Capacity: 40 oz.
Installation
Remove plastic key from wall bracket. Provide (3) #10 x 1-1/2" (M5 x 38mm) mounting screws to mount the wall bracket on wall at points
indicated by an S. For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with
screws. For other wall surfaces, provide fiber plugs or expansion shields with screws, or provide 1/8" (3mm) toggle bolts or expansion bolts.
For mirrors or glass surfaces, use pressure sensitive tape strips furnished by manufacturer: Apply tape to back of wall bracket within outlined
areas; press wall bracket onto glass surface; then allow the tape to set 24 hours before mounting the container and filling with soap. Hold lid
upright inline with wall bracket and slide its two pivot points into upper left and right slots of wall bracket; a click sound will be heard when lid
is properly in place. With lid in the upright (open) position, slide container down into the wall bracket’s V-shaped groove. Swing lid down and
push it toward the wall; a click sound confirms lid is locked.
Note: Provide 4" (100mm) minimum clearance from lid to underside of any horizontal projection for top filling and 5" (125mm) minimum
clearance to the left of unit for disengaging the concealed locking device. Push buttons should be located 44" (1120mm) maximum above the
finish floor.
Operation
A measured amount of soap is manually dispensed by pushing against valve push button. Valve operation complies with ADA Accessibility Guidelines by requiring no more than 5 lbs. pressure to actuate and requires no grasping or twisting by operator. To fill container, use the plastic key provided or any small pointed object to push in concealed locking device located at upper left side of wall bracket. The lid will automatically pop forward, allowing it to swing up to fill. After filling, swing lid down and push back towards wall until a click confirms the lid is locked into place.
Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
|
