For partition thickness 1/2" - 1-1/4". Capacity: 0.7 gallon
Construction

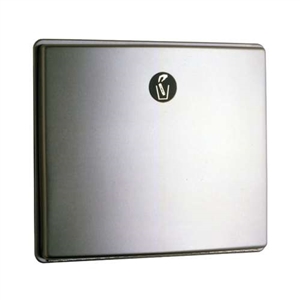

Partition mounted sanitary napkin disposal is fabricated of 18-8, type 304, 22 gauge stainless steel with a satin finish on all exposed surfaces. Self closing lid is secured to cabinet with spring loaded, full length stainless steel piano hinge at the bottom. Each door is equipped with two stainless steel cable door swing limiters and a finger pull recess at top for easy opening. Furnished with a removable, leak proof molded polyethylene receptacle.
Installation
Mount unit in toilet partition 1/2" to 1-1/4" (13 to 32mm) thick, centered through a cutout specially ordered from
partition manufacturer or field cut. Dimensions of cutout are to be 11" wide x 9-3/8" high (280 x 240mm). For factory made
cutouts,location and size details must be furnished to partition manufacturer.
Note: Cutouts in Bobrick laminated plastic toilet partitions can be pre-cut for Bobrick partition mounted accessories at factory
if location and size of cutouts are specified and order for both partitions and accessories are received together.
For installation with machine screws furnished by manufacturer, place the door assembly with four mounting holes in the
flange firmly in one side of the partition cutout. Use the flange as a template to mark mounting hole locations, indicated by an
S, then drill (4) 5/16" (7.9mm) diameter holes through the partition. Place the door assembly with four weld nuts on the rear
of the flange on the opposite side of partition, making sure the weld nuts go into the mounting holes in partition. Secure the
door assemblies together, back to back, using screws furnished, tightening screws until flanges are flush with and tight against
partition surface. For installation in 1/2" (13mm) thick partitions, use short screws furnished. For installation in 1" (25mm)
thick partitions, use long screws furnished. For other panel thicknesses, provide screws as needed. Screw length to be the
same as the panel thickness. Attach loose ends of cable door swing limiters to opposite weld-studs in second door using two
hex lock nuts furnished by manufacturer. Ends of door swing limiters must rotate freely around weld studs. Attach door return
springs to spring retainer brackets at inside bottom of doors, both left and right sides. Place end of spring wire through hole in
spring retainer bracket with end of spring wire facing toward the outside of the unit. Attach the other end of the spring to the
spring retainer bracket of the door on the opposite side of the panel in the same manner. Repeat this procedure for the second
spring on the other side of the unit.
Operation
Serves two toilet compartments. Self closing doors pull down for access to disposal with less than 5 lbs force. Receptacle is removable from either side of unit for servicing. Hanging sight barrier swings out of the way when waste is deposited in receptacle and when removing receptacle from unit for servicing.
Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
|
