Bobrick B-543 Cubicle Collection Surface Mtd Toilet Tissue Disp, Satin Finish

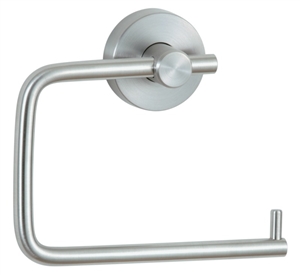

Bobrick B-543 Toilet Paper Holder image

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $93.30
Our Price: $56.41
Savings: $36.89
Manufacturer: Bobrick
Country of Origin: China
Availability: Usually Ships within 2-3 Business Days


Free Shipping
Product Code: B-543
Qty:

Description Technical Specs

Bobrick B-543 Cubicle Collection Surface Mounted Toilet Tissue Dispenser, Satin Finish
Construction
Toilet paper holder holds and dispenses all standard core roll tissue from 3/4" up to 1-1/2" and 4" wide. Toilet Tissue Dispenser is type-304 stainless steel and has 3/4" diameter post. Dispenser bar is 3/8" diameter, secured to post with a concealed set screw allowing for right or left handed assembly. Retaining pin is 1/4" diameter and pressed into dispenser bar. Concealed mounting flange is 7/32" thick stainless steel plate, 1-13/16" outside diameter and equipped with two screw holes for attachment and thread on outside edge to fasten cover. 17 gauge stainless steel threaded flange cover is 1-15/16" diameter and fastens over mounting flange to conceal mounting screws. Post and mounting flange are to be machined as one piece. Satin Finish

Installation
For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet metal screws (not furnished). For other wall surfaces, provide fiber plugs or expansion shields for use with sheet metal screws (not furnished), or provide 3mm (1/8") toggle bolts or expansion bolts.

For partitions with particle board or other solid core, secure with sheet metal screws (not furnished), or provide through bolts, nuts, and washers. For hollow core metal partitions, provide solid backing into which the sheet-metal screws (not furnished) can be secured.

Operation
One roll of toilet paper is placed on holder bar and replaced when empty. Uncontrolled delivery

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
