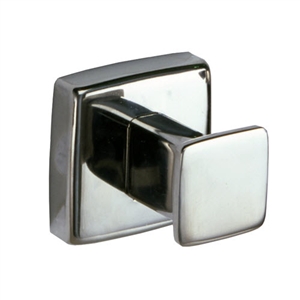

Bobrick B-671 Bright Polished Stainless Steel Single Robe Hook, Concealed Mt
Bobrick B-671 Bright Polished Stainless Steel Single Robe Hook

Large Quantity, Item Customization, or Government Project? Request A Quote or give us a call at 920-569-0895
List Price: $48.90
Our Price: $28.12
Savings: $20.78
Manufacturer: Bobrick
Country of Origin: Mexico
Availability: Usually Ships within 2-3 Business Days


Free Shipping
Product Code: B-671
Qty:

Description Technical Specs

Bobrick B-671 Bright Polished Stainless Steel Single Robe Hook, Concealed Mount
Construction
Robe hook shall be surface-mounted fabricated of type-304 stainless steel with bright polished finish. Flange shall be 22-gauge and equipped with a concealed, 16-gauge mounting bracket that is secured to a concealed, 16-gauge wall plate with a stainless steel setscrew. Cap shall be 10-gauge, welded to the support arm.

Installation
To remove concealed wall plate from back of flange and mounting bracket, loosen setscrew. Mount wall plate so prongs are at top; secure with two sheet-metal screws, furnished by manufacturer, at points indicated by an S. Engage mounting bracket onto prongs of wall plate, then secure into position by tightening setscrew at bottom of flange.

For partitions with particle-board or other solid core, secure with sheet-metal screws furnished, or provide through-bolts, nuts, and washers

For hollow-core metal partitions, provide solid backing into which the furnished sheet-metal screws can be secured.

For masonry wall, provide fiber plugs or expansion shields for use with sheet-metal screws furnished, or provide 1/8" toggle bolts or expansion bolts.

For plaster or drywall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws furnished.
