For Single Roll Option see Model B-685
Construction

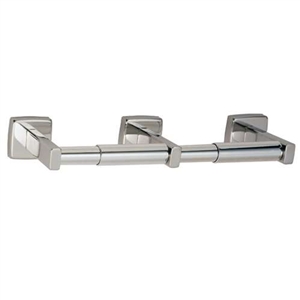

Dual roll toilet paper roll holder flanges, support arms, and wall plates are fabricated of 18-8, type 304, 16 gauge stainless steel. The unit accommodates two standard core toilet paper rolls up to 5-1/2" diameter. The spindles are chrome plated plastic with heavy duty internal springs. All exposed surfaces have bright polish stainless steel finish.
Installation
To remove concealed wall plates from back of flanges and mounting brackets, loosen set screws. Mount each wall plate with
prongs at top; secure with sheet-metal screws (furnished by manufacturer) at points indicated by an S. Engage mounting
brackets onto prongs of wall plates, then secure unit into position by tightening set screws at bottom of flanges.
Note: Centerline-to-centerline of concealed wall plates must be within 1/16'' (1.6mm) of dimension shown.
For partitions with particle board or other solid core, secure with sheet metal screws furnished, or provide through bolts, nuts,
and washers.
For hollow core metal partitions, provide solid backing into which the furnished sheet metal screws can be secured.
For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with
sheet metal screws furnished.
For other wall surfaces, provide fiber plugs or expansion shields for use with sheet metal screws furnished, or provide 1/8''
(3mm) toggle bolts or expansion bolts.
Operation
Spring loaded spindles revolve freely and hold rolls until core is removed.
Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
Options
Model B-6867 is the same except with satin finish.
|
