Bobrick B-697 Recessed Toilet Paper Holder

Home > Toilet Tissue Dispensers > Multiple Roll >

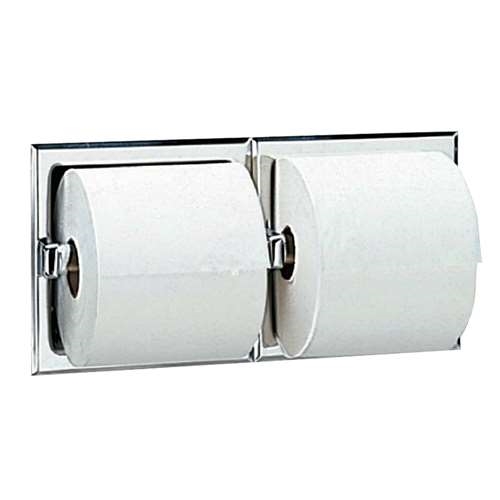

Bobrick B-697 Recessed ADA Compliant Toilet Tissue Dispenser, Bright Polished

List Price: $183.30

Our Price: $105.40

Savings: $77.90

Manufacturer: Bobrick
Country of Origin: Taiwan
Availability: Usually Ships within 2-3 Business Days

Product Code: B-697

Qty:

Description

Technical Specs

Bobrick B-697 Recessed ADA Compliant Toilet Tissue Dispenser, Bright Polished Finish

For Single Roll Option see Model B-667

Construction

Recessed toilet paper roll dispenser is fabricated of 18-8, type 304, 22 gauge stainless steel with the shell and flange as one piece seamless construction and four (4) countersunk mounting holes in the back. It is furnished with plated steel mounting clap that attaches to the back of the unit with four sheet meal screws for installation in stud wall and counter top aprons. The spindles are chrome plated with heavy duty internal springs. They can be switched to the theft resistant spindle B-283-604 (ordered separately). Exposed surfaces are bright polished stainless steel.

Installation
Provide framed rough opening 11-3/4" wide x 5-1/4" high. Minimum recessed depth required from finish face of wall or apron is 3-3/8".

For installation in stud wall construction and counter top aprons without backing: Loosely attach mounting clamp to back of unit with sheet metal mounting screws. Insert into rough opening. Adjust mounting clamp so it grips surface inside rough opening. Secure in place by tightening four sheet metal mounting screws.

For installation in stud wall construction and counter top aprons with backing: Discard mounting clamp furnished with unit. Insert unit only into rough opening and secure with sheet metal screws, furnished. Backing must comply with local building codes.

Operation
Spring loaded spindles revolve freely and hold rolls until core is removed.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.

Options
Model B-6977 is the same except with satin finish.
