Bobrick B-7128 QuietDry™ Surface Mtd TrimDry™ ADA Compliant Automatic Dryer

Alternative Views:

List Price: $1,103.70

Our Price: $634.63

Savings: $469.07

Manufacturer: Bobrick
Country of Origin: China
Availability: Usually Ships within 2-3 Business Days

Product Code: B-7128

Voltage*:

115V
208-240V

Qty:

Description

Technical Specs

A Note from the Manufacturer

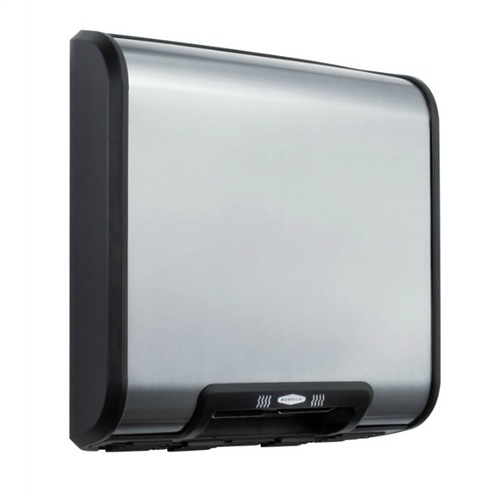

Bobrick B-7128 QuietDry™ Surface Mtd TrimDry™ ADA Compliant Automatic Hand Dryer with Satin Stainless Steel Cover and Black Plastic Trim, Contributes to LEED Certification

Cover Options
White Epoxy Cover with Black Plastic Trim - see model B-7120

Construction

Automatic hand dryer has a 22 gauge galvanized steel with exposed surface type 304 stainless steel with #4 satin finish vertical grain cover with UP 94-5VA black plastic trim and side panels. The cover comes equipped with uniquely designed dual air outlets. The air inlet has a vandal resistant grill. The cover does not project more than 4" from the wall and is secured to the mounting base with two vandal resistant, recessed hex screws. The mounting base is 20 gauge plated steel with four 6mm diameter mounting holes. The motor is universal, 1/7 hp, 8000 rpm on resilient mounting and comes equipped with an automatic thermal overload switch. Two balanced ,double inlet centrifugal fans are mounted on the motor shaft and directs airflow over heating element. Two coiled nickel chrome heating elements are mounted in mica frame and protected by automatic thermal overload switches. The heating elements heat the air without hot spots and are inaccessible to vandals. Infrared sensor automatically turns dryer on when hands are held within the path of the sensor.

Installation
Wall preparation: Locate mounting base on wall using template provided. For brick, stone, and concrete walls drill four 0.315" (8mm) holes to suit provided wall plugs 0.315" (8mm) x 1-1/4" (45mm) and screws # 10 (4.8mm) x 2" (50mm) long. See template for wall plug and screw installation details. For plaster or dry wall construction, provide concealed backing to comply with local building codes and secure with four #10 (4.8) round-head sheet-metal screws or 3/16" (5mm) toggle bolts (not furnished). Provide electrical service from nearest distribution panel to dryer mounting base in conformance with local electrical codes.

Wiring Instructions:
1. For 115-Volt Dryers — Connect ground wire to ground terminal marked , the black or hot wire to terminal marked L1, and neutral or white wire to terminal marked N.
2. For 208–240-Volt Dryers — Connect ground wire to ground terminal marked and the 208-240-volt wires to terminal marked L1 and L2.

Notes: Electronic sensor in Automatic dryers will pick up movement within 6" of the air-outlet opening. Use caution when choosing location for Automatic dryers in confined areas. Consider proximity to doorways and other traffic areas.

Bobrick automatic hand dryers should be installed at least 15" (380mm) above any projection or horizontal surface which may interfere with the operation of the automatic sensor.

Operation

User activates dryer by placing hands under sensor. Dryer automatically shuts off after time-out when user removes hands from sensor activation zone.

Warranty
In addition to Bobrick's one-year guarantee, Bobrick extends a limited ten (10) year warranty from the date of purchase on all parts for Model B-7120 and B-7128 hand dryer, except motor brushes, to the original owner of the installed unit against defects in factory workmanship or material under normal use and service. Motor brushes are warranted for three years from date of purchase. This warranty is limited to the repair or exchange of defective parts at the option of Bobrick.
