Bobrick B-8236 Foam Soap Dispenser

Home > Soap Dispensers > Deck Mounted >

Bobrick B-8236 Lavatory Mounted Manual Foam Soap Dispenser with 6" Spout, 34 oz

List Price: $229.20

Our Price: $143.25

Savings: $85.95

Manufacturer: Bobrick
Country of Origin: USA
Availability: Usually Ships within 2-3 Business Days

Product Code: B-8236

Qty:

Description

Technical Specs

A Note from the Manufacturer

Bobrick B-8236 Lavatory Mounted Manual Foam Soap Dispenser with 6" Spout, 34 oz

Construction

Lavatory mounted foam soap dispenser has a type 304 stainless steel 6" spout with a high polished deep drawn stainless steel cover shell. The cover spacer, body, foam pump, and shank are fabricated of high impact resistant acetal plastic. The escutcheon is chrome plated, high impact resistant ABS with a bright polish finish. Soap container is translucent, shatter resistant polyethylene. Capacity: 34 oz.

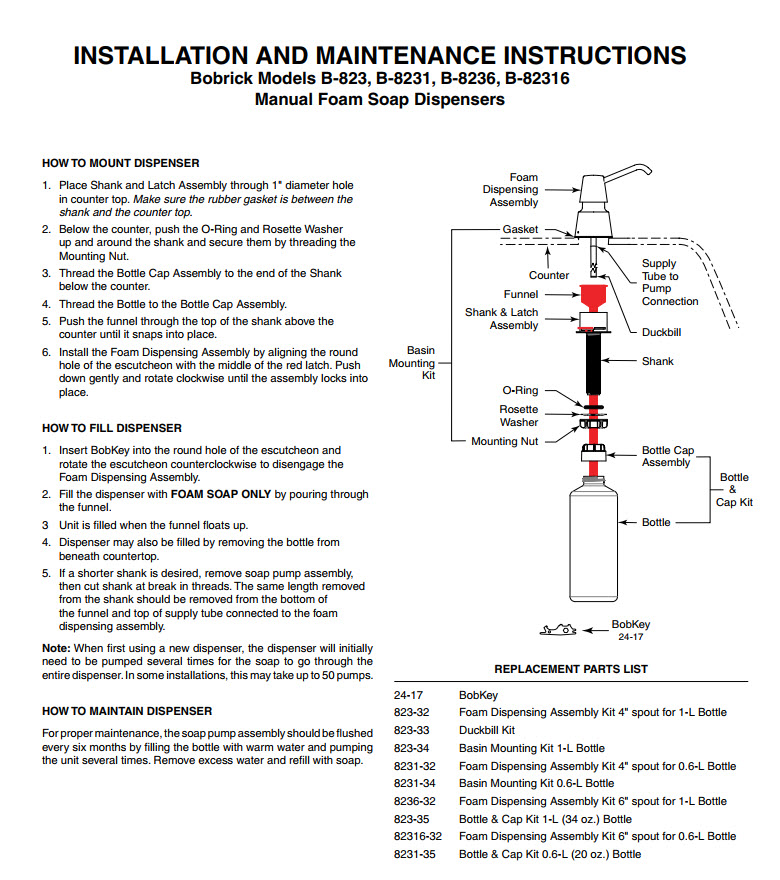

Installation
Unit is designed for installation in 1'' diameter hole in porcelain enameled steel, cast iron or vitreous china lavatories, as well as in counter tops adjacent to lavatories. Unit may be mounted in unused faucet hole or through special hole requisitioned when lavatory is ordered from manufacturer (specify punching location). Shank accommodates maximum 3'' mounting thickness and can be cut in the field. Clearance required for container diameter is 3-3/8''.

Operation
Soap is manually dispensed by pushing down on the piston. Spout can rotate 360 degrees without damage to the unit. The escutcheon locks to the body with a concealed locking mechanism that is opened with special key provided. Unit can be filled from the top by unlocking the cover and removing piston, spout, and supply tube assembly. It can be filled from the removing the container below the lavatory.

Manufacturer's Note: Bobrick foam soap dispensers are designed to dispense commercially marketed all purpose foam hand soaps.

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.

Options

Model B-8231 has 20 oz globe with 4" spout
Model B-823 has 34 oz globe with 4" spout
Model B-82316 has 20 oz globe with 6" spout
