Bobrick B-826 Automatic Soap Dispenser

Home > Soap Dispensers > Deck Mounted >

Bobrick B-826 Automatic IR Sensor Lavatory Mtd Liquid Soap Disp, 27 oz or 54 oz

List Price: $277.50

Our Price: $159.56

Savings: $117.94

Manufacturer: Bobrick
Country of Origin: USA
Availability: Usually Ships within 2-3 Business Days

Product Code: B-826

Qty:

Description

Technical Specs

A Note from the Manufacturer

Bobrick B-826 Automatic IR Sensor Lavatory Mtd Liquid Soap Disp, 27 oz or 54 oz, Bright Polish

Construction
Automatic liquid soap dispenser has bright polished chrome plated plastic spout cover assembly with LED light indicators. Red blinking LED indicates soap level is low, yellow blinking LED indicates battery life is low. It is equipped with integral plastic shank. The motor assembly is water resistant, plastic construction that fits onto bottom of shank and top of soap refill. An optional plastic spacer is included for mounting dispenser when sink rim is 3/4" high or greater. Dispenses OneShot soap refills of 27 fl oz or 54 fl oz (not included)

Installation
Unit is designed for installation in 1" diameter hole in porcelain enameled steel, cast iron or vitreous china lavatories, as well as in counter tops adjacent to lavatories. Unit may be mounted in unused faucet hole or through special hole requisitioned when lavatory is ordered from manufacturer (specify punching location). Shank accommodates maximum 2" mounting thickness. Clearance required for soap refill bottle and motor housing is 5" for the 27-fl oz (800ml) soap refill and 5-½" diameter for 54-fl oz (1600ml) soap refill and 11-5/8" minimum depth for height of 27 fl oz. of soap refill bottle and motor housing and 13-5/8" minimum depth for height of 54-fl oz. (1600ml) soap refill bottle and motor housing. Place 4 "D" Cell Batteries (included in Model B-826.18 only) into battery pack. An optional single 6V AC adapter to replace the battery pack is available, order Part No. 826-20.

Operation

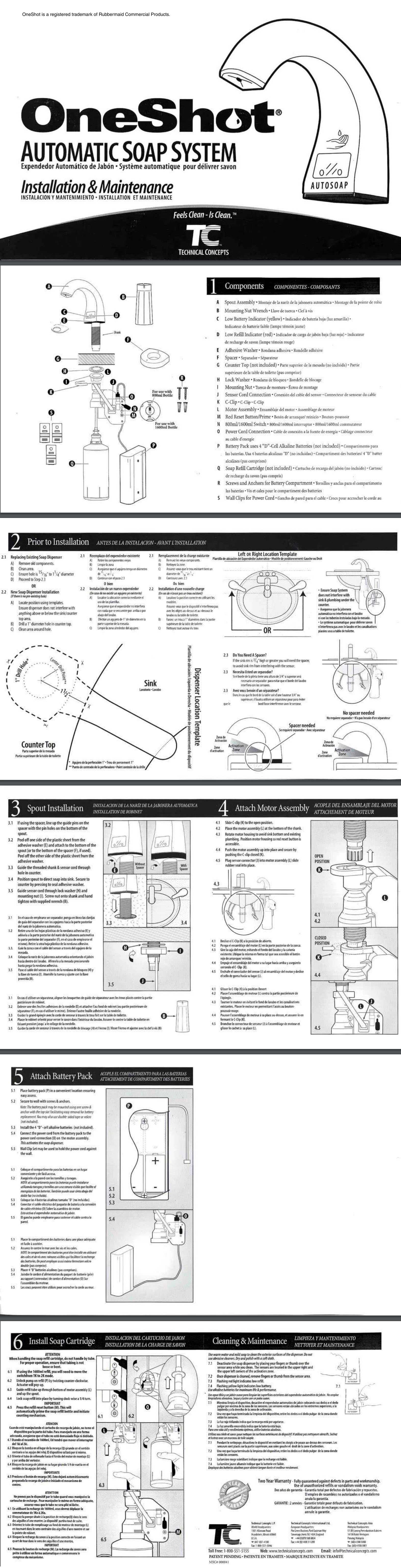

Soap will automatically dispense .8 ml of soap when hand is placed under soap spout. See the Owner's Manual for more information (click on the tab labeled A Note from the Manufacturer located under the product image above.)

Warranty
One (1) Year Manufacturer's Warranty - Warranted to be free of defects in material or workmanship for one (1) year from date of sale.
