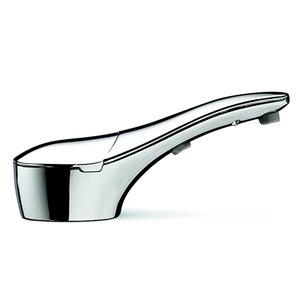

Bobrick B-848 Automatic Counter Mounted Foam Soap Dispenser, 34 oz, Polished Chrome

Bobrick B-848 Automatic Foam Soap Dispenser

List Price: $1,066.50

Our Price: $666.56

Savings: $399.94

Manufacturer: Bobrick
Country of Origin: USA
Availability: Usually Ships within 2-3 Business Days

Product Code: B-848

Qty:

Description

Technical Specs

Bobrick B-848 Automatic Counter Mounted Foam Soap Dispenser, 34 oz, Polished Chrome Finish

Construction

Automatic foam soap dispenser has spout and stem assembly constructed in durable die cast zinc and is available in 5 finishes. Unit is equipped with a spring loaded 180 degree rotatable lid with a concealed locking mechanism for top filling. The rotatable lid mechanism consists of metal components. Integrated to spout are a grey plastic dispense tip and activation lens housing. Delrin stem connects to the translucent, shatter resistant high density polyethylene soap bottle. The bottom ABS plastic housing is water resistant and houses the PC board, motor that drives the gear pump responsible for pumping soap through a vinyl tube to the spout, and the gear pump housing. It includes a portion control knob, flush button to allow for system cleaning and maintenance, a connector for the fiber optic cables, and power port. The pair of fiber optic cables connects the plastic activation lenses to an IR sensor located on a PC board in the bottom housing. A third plastic fiber optic cable connects an LED located on the PC board to an acrylic lens at the tip of the spout. LED light indicators show unit is ready for activation when they flash green, unit is in use when there are no indicators on, and flash red when an object remains in the activation zone after single activation. Dispenses commercially marketed all purpose bulk foam hand soaps and antibacterial foam soaps that are not alcohol or iodine based. Acceptable foam soaps need to have a viscosity of less than 100cPc.
Capacity: 34 oz

Installation
Unit is designed for installation into counters up to 2" (50mm) maximum thickness with 1-3/8" (35mm) diameter mounting hole. Unit may be mounted through special hole requisitioned when lavatory is ordered from manufacturer (specify hole location). Recommended mounting location is between 6" to 8" (150 to 205mm) from back wall and 3" (75mm) from the sink rim to the center of the mounting hole. Minimum 18" (455mm) vertical and 5" (125mm) diameter clearance required for soap bottle and bottom housing below mounting hole. Plug AC Adapter (6V AC adapter with US plug included) into wall and end plug into power port on bottom housing.
Designers Note: For sinks with rim over the counter area, ensure that rim does not come in contact with activation area. Please refer to 824-307 Installation Instructions.

Operation

To fill dispenser, insert tip of standard BobKey provided into opening of the concealed locking mechanism in the Spout Assembly with spout body to disengage door for quick and easy top filling. Lid will rotate open for filling dispenser with bulk foam hand soap only. Rotate door counter-clockwise to close and lock in place.

Spout will dispense foam that is generated by mixing air and foam soap. The texture of the foam can be adjusted by rotating the control dial. The texture may vary depending on the type of soap used. Bobrick foam soap dispensers are designed to dispense commercially marketed all purpose foam hand soaps and antibacterial foam soaps that are not alcohol or iodine based. Acceptable foam soaps need to have a viscosity of less than 100cPc (centipoise).

Warranty
Three (3) Year Manufacturer's Limited Warranty

Options

Matching faucets are available. Please contact us at [email protected] or call 1-844-699-2779 to talk to one of our friendly experts.
