Bradley 9571 Right Hand L-Shaped Bariatric Bench Shower Seat, Phenolic, Supports up to 1200 lbs

Bradley 9571 Right Hand L Shaped Bariatric Shower Seat

List Price: $1,123.00

Our Price: $842.25

Savings: $280.75

Manufacturer: Bradley Corporation
Country of Origin: USA
Availability: Usually Ships within 3-5 Business Days

Product Code: 9571-000000

Qty:

Description

Technical Specs

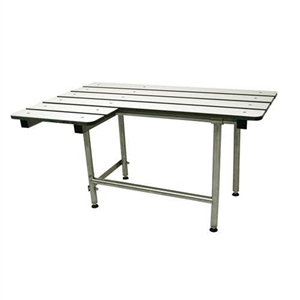

Bradley 9571 Right Hand L-Shaped Bariatric Shower Seat, Phenolic, ADA Compliant

Construction
Bariatric Bench seat frame shall be fabricated of stainless steel tube, 1-1/4" x 18 gauge square main frame with 1" x 18 gauge rd. cross members. The leg is H shaped yoke of stainless steel tubing, 1" x 18 gauge rd. tubing, Heliarc welded to 1-1/4" rd. x 12 gauge frame hinge.

Overall Dimensions: 32" x 22-1/2"

Installation
Verify all rough-in dimensions prior to installation. All shower seats must be installed using suitable fasteners and sufficient in wall backing materials. Place the seat in an upright position with mounting flanges placed firmly against the shower wall. Level the seat to the mounting height (17" - 19") by modifying the adjustable rubber feet. After marking the three holes in each flange, drill the appropriate holes. Secure the two hinge bracket flanges to the wall (mounting screws not included). Place the seat in the down position and make any final changes to the adjustable rubber feet.

Note: Be sure to use reinforced backing behind wall where mounting screws or anchoring devices are installed to ensure adequate support for the shower seat. All anchoring devices (supplied by installer) must be appropriate for specific wall construction. Severe personal injury and/or property damage may result from improper mounting.

Operation
Bariatric bench seat is automatically held in a raised position by a stainless cross member attached to the front and rear support legs. When the seat is lowered into its down position the Swing Down Leg automatically aligns the front and rear support legs with the help of the stainless cross member. When properly installed, seat can support up to 1200 lbs. – static load.

Warning: CA Residents

This product can expose you to chemicals including Formaldehyde (gas), which is [are] known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
